For Doors

Metal of Aluminum Glass doors with 1 ³/₄" minimum stile width, 1 ³/₄" thickness for single or double door application

Chassis

Cover

Brass, bronze or stainless steel

Mounting

Furnished with wood and machine screws.

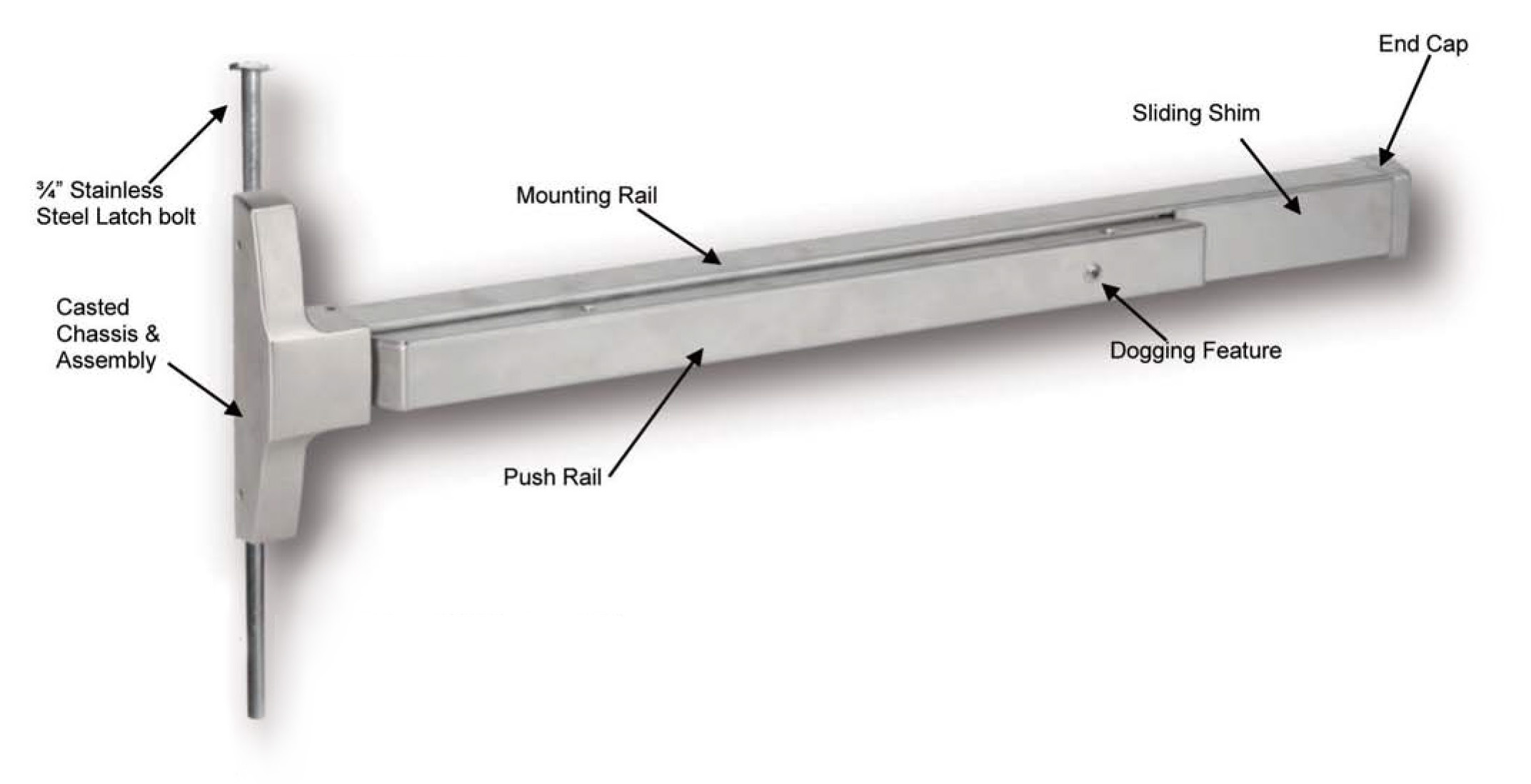

End Cap

Brass, bronze or stainless steel construction

Hand

Handed. Specify RHR or LHR

Top and Bottom Bolts

Stainless steel. Top and bottom bolt travel ⁷/₁₆" (11mm) Projection adjustable to 1" (25mm)

Spring

Stainless steel throughout

ANSI Standard

A156.3, Grade 1

Rail Assembly

Heavy gauge brass, bronze or stainless steel

Strike

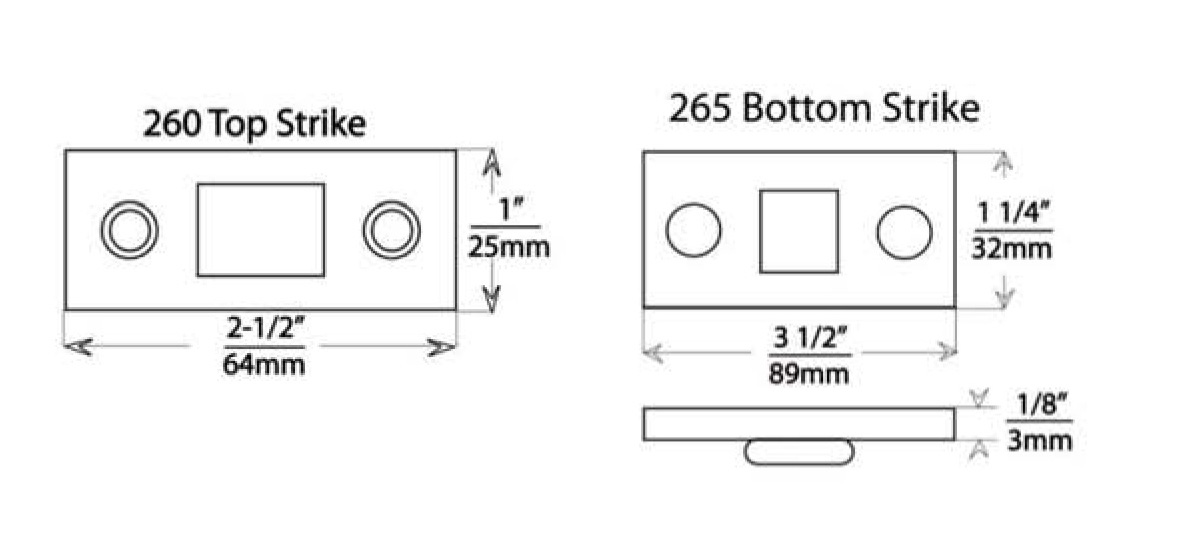

260 Top and 265 Bottom strikes packed standard (See strike page)

Dogging Feature

Allen-type key furnished standard

Mullion

Available

Ul and ULC Listed

GLSCVR9800 Series for Panic and Safety for all types of 4'x8' single doors and 8'x8' double doors for Panic & Safety

Finish

Architectural plated finishes

Touchbar projection
                 neutral
                 depressed

2 ¹/₂" (63.5mm)
1 ⁷/₈" (47.625mm)

Center case

8 ¹/₁₆" x 1 ¹/₈" x 2"
(205mm x 27.575mm x 50.8mm)

GLS9800EO36               34 ^₁/₂"                                          8"                         28" to 36" Width

GLS9800EO48               46 ^₁₁/₃₂"                               13 ²⁵/₃₂"                    28" to 42" Width
