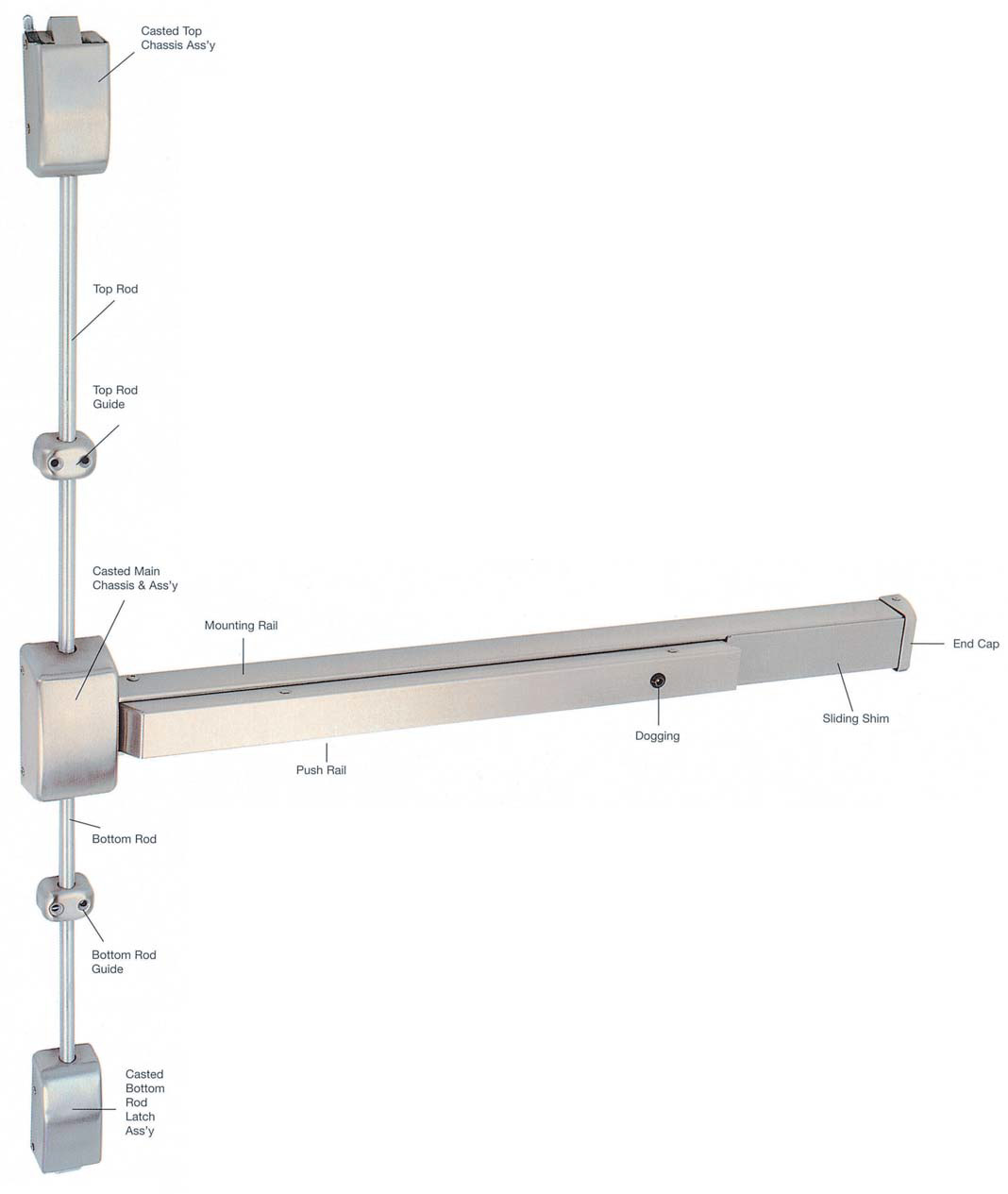

LEON/MCKIN #3100 & #7100 Vertical Rod Type Exit Device
Specifications
For Doors -------------- 13/4” thick standard optional 21/4” minimum stile width required for signle or double door application using standard 239 strike and pull or lever trims.
Chassis ------------------ Nonferrous alloy (Panic Grade), steel (Fire Grade).
Cover------------ Nonferrous alloy. Cover stock hollow metal doors with 161 cutout.
Mounting ---------------- Furnished standard with wood and machine screws. Available with thru bolts on request.
End Cap-------Steel construction.
Alarm--------- Available. Prefix “Alrm” before part #.
End Cap-------Steel construction.
Hand --------------------- Easily field reversible. Specify at time of order LHRB, RHRB for convenience.
UL and ULC Listed -- 3100 Series for panic. 7100 Series for fire exit hardware for all types of 8’ x 8’ double doors for up to 3 hours fire labeled installations, conforms to standards UL 10C and UBC 7-2-1997 codes.
Dogging Feature ------ Allen-type key furnished standard on non-fire labeled devices.
Finish -------------------- Aluminum (alum), dark bronze duranodic (duro), gold.
Rail Assembly----- Heavy gauge steel, painted.
Latch Bolt,Spring ----- Stainless steel.
ANSI standard --------- A156.3, Grade 1.
Rail Assembly----- Heavy gauge steel, painted.
Strike --------------------- see strike page.
Door size--------------- 36” x 84” / 48” x 96” / 36” x 96” doors.
| Touchbar height to finished floor | 41"(1043mm) at center |
| Touchbar projection neutral depressed |
2 1/2"(64mm) 1 3/4"(45mm) |
| Center case | 5 1/8x2 3/4X 2(129mm x 69mm x 52mm) |
|
Device length - Short 3'(914mm) |
2'9"x3'(840mm to 914mm) door size 2'9"x4'(1145mm to 1219mm) door size |

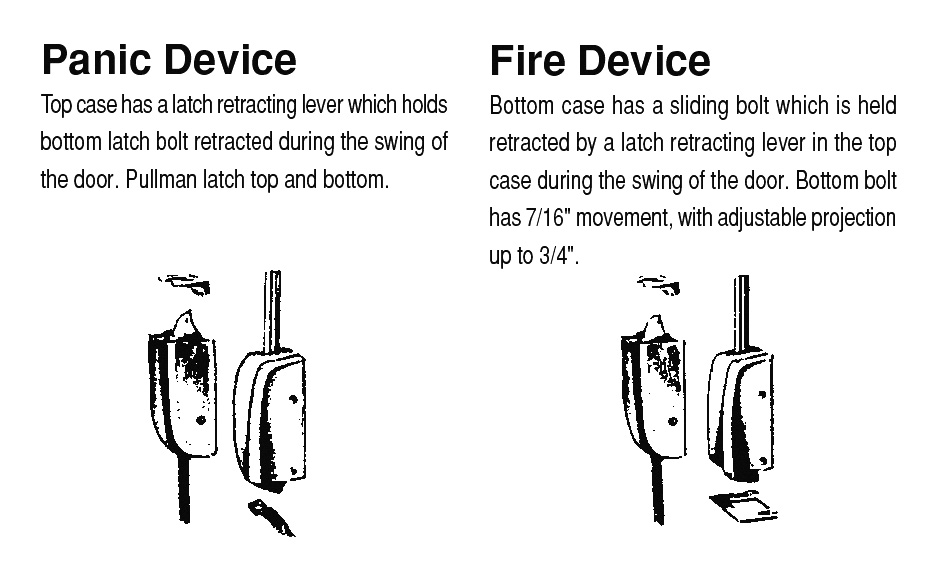

| Panic grade top & bottom latch case | 315/16"x21/8"x13/8"(100mm x 52mm x 42mm) |
| Fire grade top latch case | 315/16"x211/16"x13/16"(100mm x 68mm x 53mm) |
| Fire grade bottom latch case | 315/16"x21/8"x13/8"(100mm x 52mm x 42mm) |
| top and bottom rod length for 36" x 84" doors | Top rod 43 1/4" (1350mm), bottom rod 37 3/4" (960mm) |
| top and bottom rod length for 48" x 96" doors | Top rod 53 1/16" (1350mm), bottom rod 37 3/4" (960mm) |
| Vertical rods | 1/2"(13mm) Round tubing. |
