LEON/MCKIN     Alarm Exit Hardware  #ALM 6000-36  #ALM 9000-36

Rim Type Exit Devices

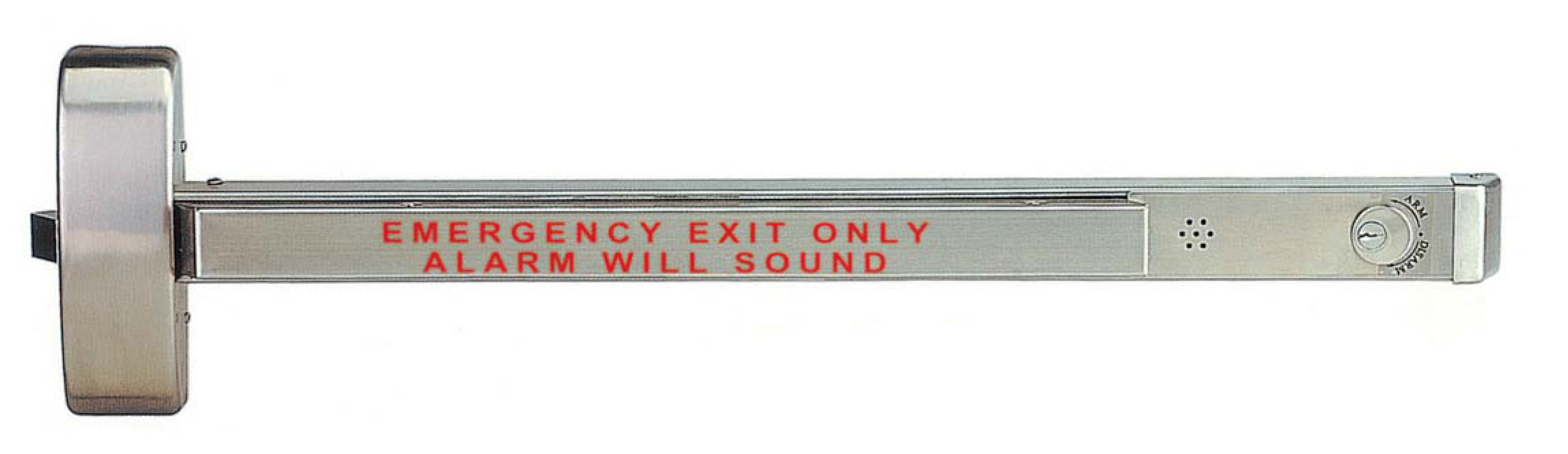

ALM 6000-36 Alarm rim type 36" door (panic grade)

ALM 6000-48 Alarm rim type 48" door (panic grade)

ALM 9000-36 Alarm rim type 36" door (fire grade)

ALM 9000-48 Alarm rim type 48" door (fire grade)

Vertical Rod Type Exit Devices

Prefix "ALM" before part #.

Dimensions

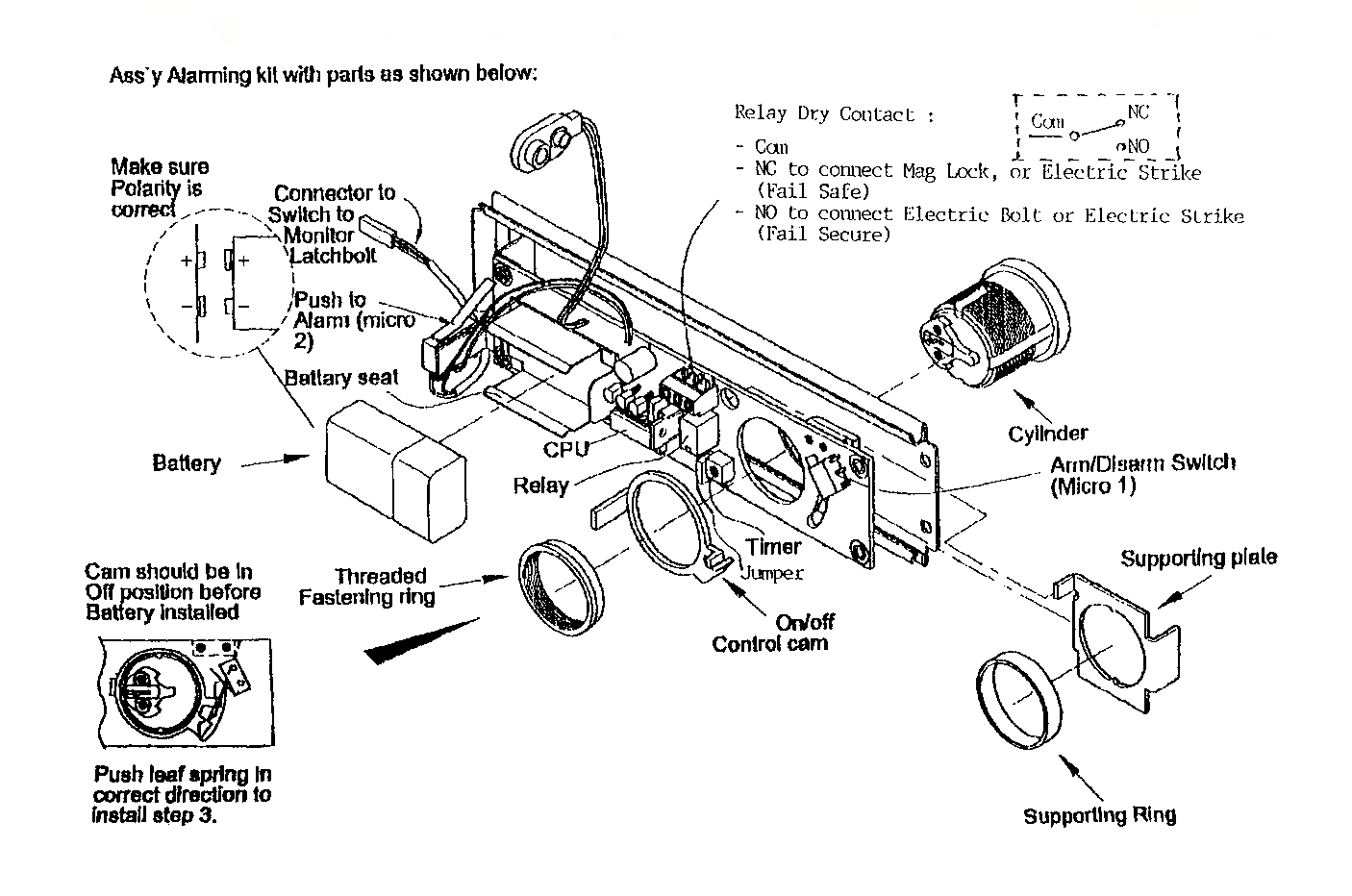

Alarm units has an internal horn. When the push rail is depressed, the horn sounds to provide an audible an means of signaling that the door has been opened and violated, The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off.

Jumper cable is provided to swich to continuous alarm.

The key switch to turn the alarm off is a standard 1¹/₄" cylinder with "C" keyway. The alarm operates on one standard 9 volt transistor battery. when battery is weak the horn will emit an intermittent signal.

Alarmed units are supplied with two switches. One switch moniters the push rail and the other switch monitors the latchbolt for full proof security.

Unit includes "emergency exit only. Alarm will sound" decal for application on door or unit.

Finishes
