FC2100F / FC2300F

FC2100F / FC2300F / Trim Selection

LEON/MCKIN

FC2100F (MCVR9800) Series Exit Devices

Grade 1 Concealed Vertical Rod Exit Device For Metal Doors

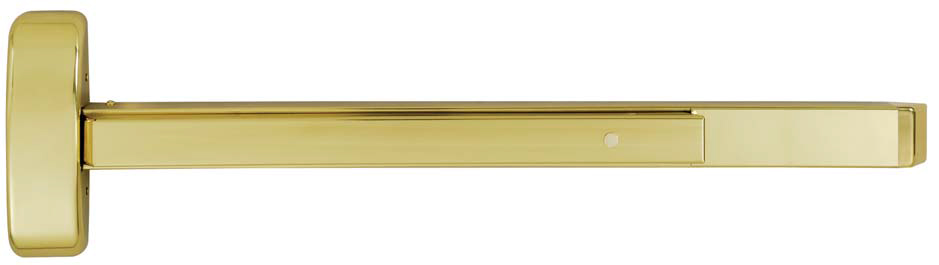

 C6 1

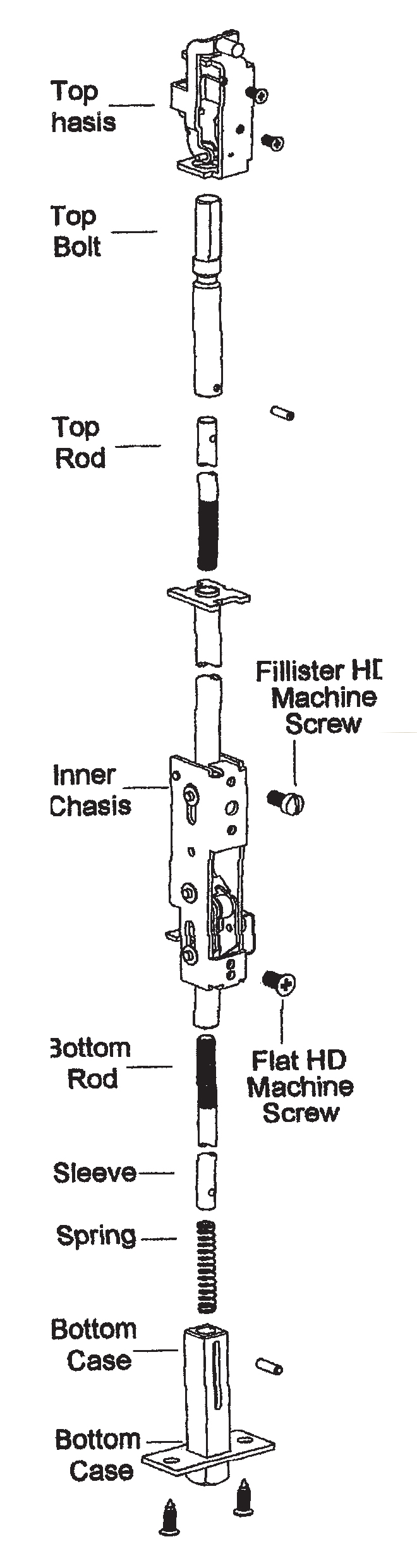

C6 2

Specifications

For Doors

Metal. 13/4" (44.5mm) minimum thickness ;
41/2"(114mm) minimum stile width

Chassis

Nonferrous alloy

Chassis Cover

Bronze or stainless steel

Mounting

Furnished standard with machine screws.

End Cap

Brass, Bronze or stainless Steel Construction

Handing

Easily field reversible. Specify at time of order LHRB, RHRB for convenience.

ANSI standard

A156.3, Grade 1.

Strike

260 top and 265 bottom.

Top and bottom bolts

Stainless steel. Top and bottom bolt travel 7/16" (11mm)  Projection adjustable up to 1"(25mm)

Fire Exit hardware

M98CVR Series for fire Exit hardware for all types of 8" x 8" Double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.

Rail height

Specify door opening and mounting height of center line of rail ordering an vertical Rod Exit Device 41" from floor.

Trim

See trim Designs section

Door size

M98CVR 3684 for 36" x 84" doors. Other sizes avail e on request ; M98CVR 3696 for 36" x 96" doors.

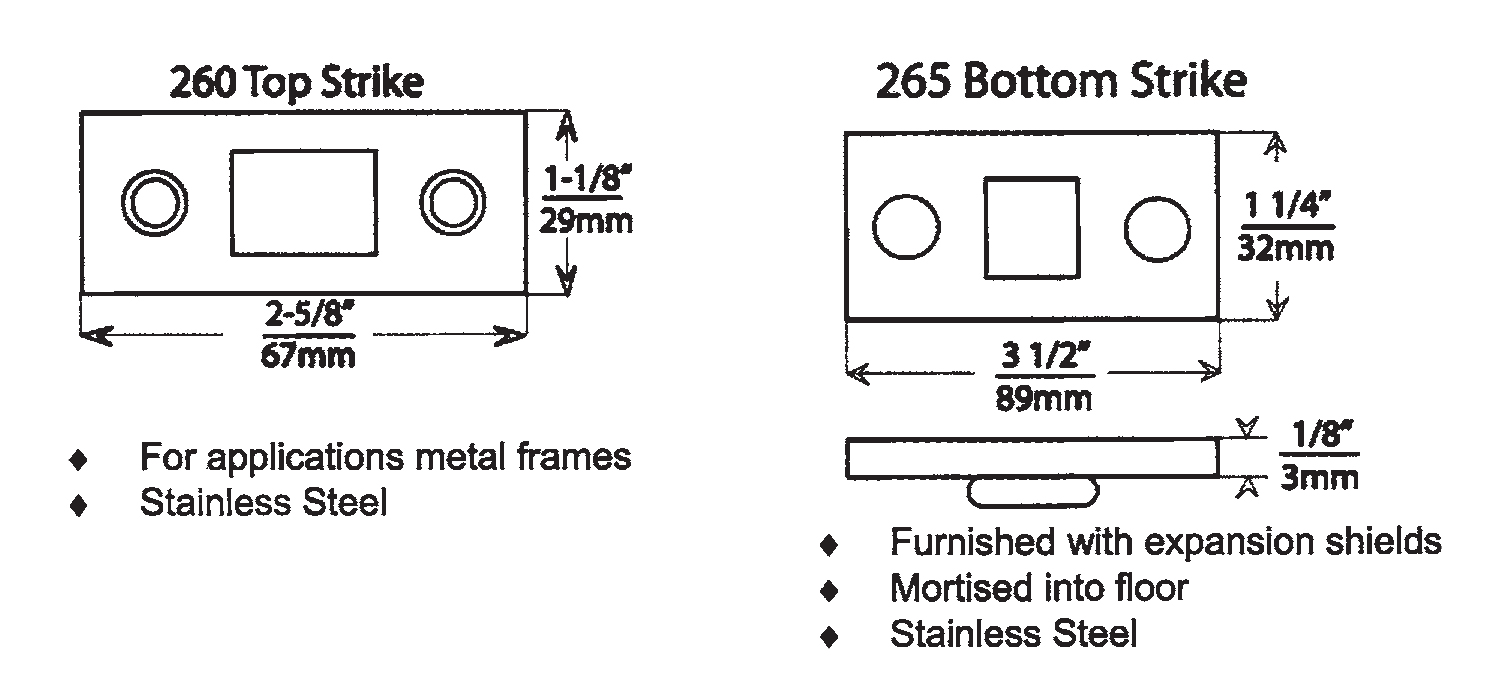

C6 3





back to top

LEON/MCKIN

FC2300F (WCVR9800) Series Exit Devices

Grade 1 Concealed Vertical Rod Exit Device For Wood Doors

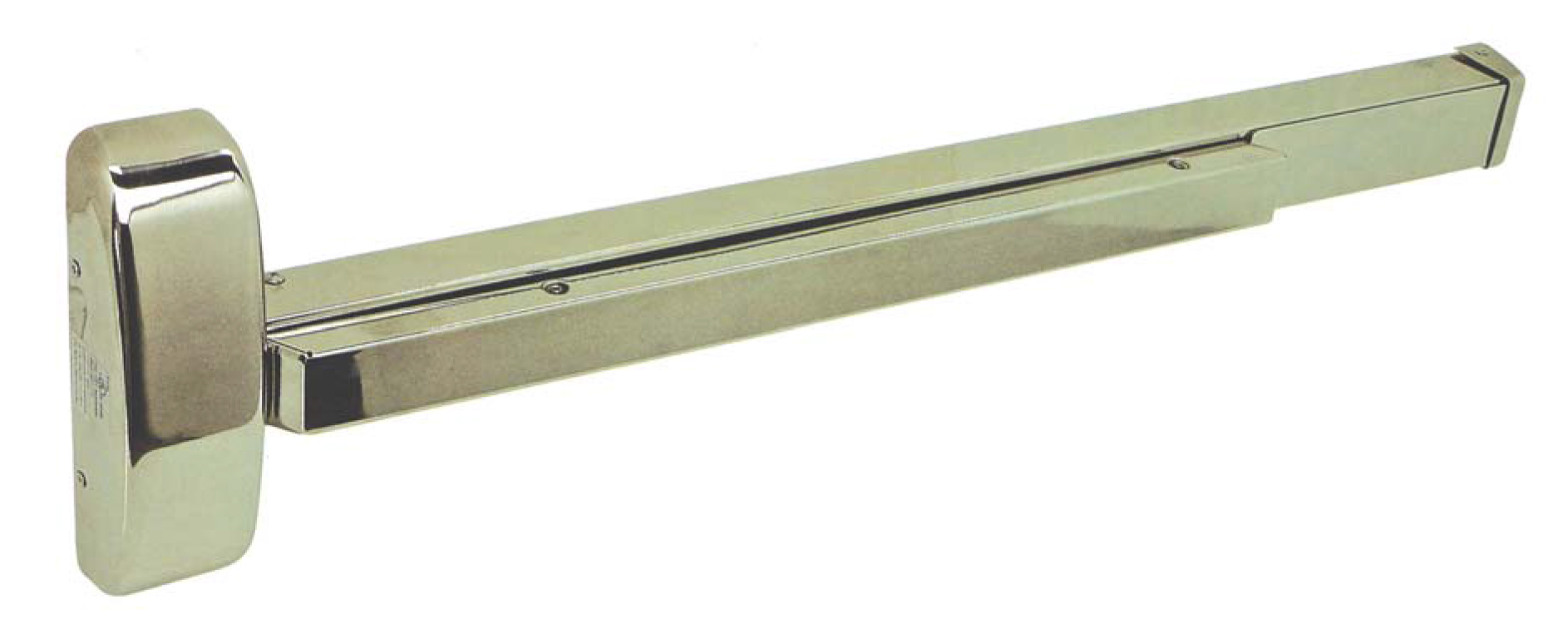

 C6 4

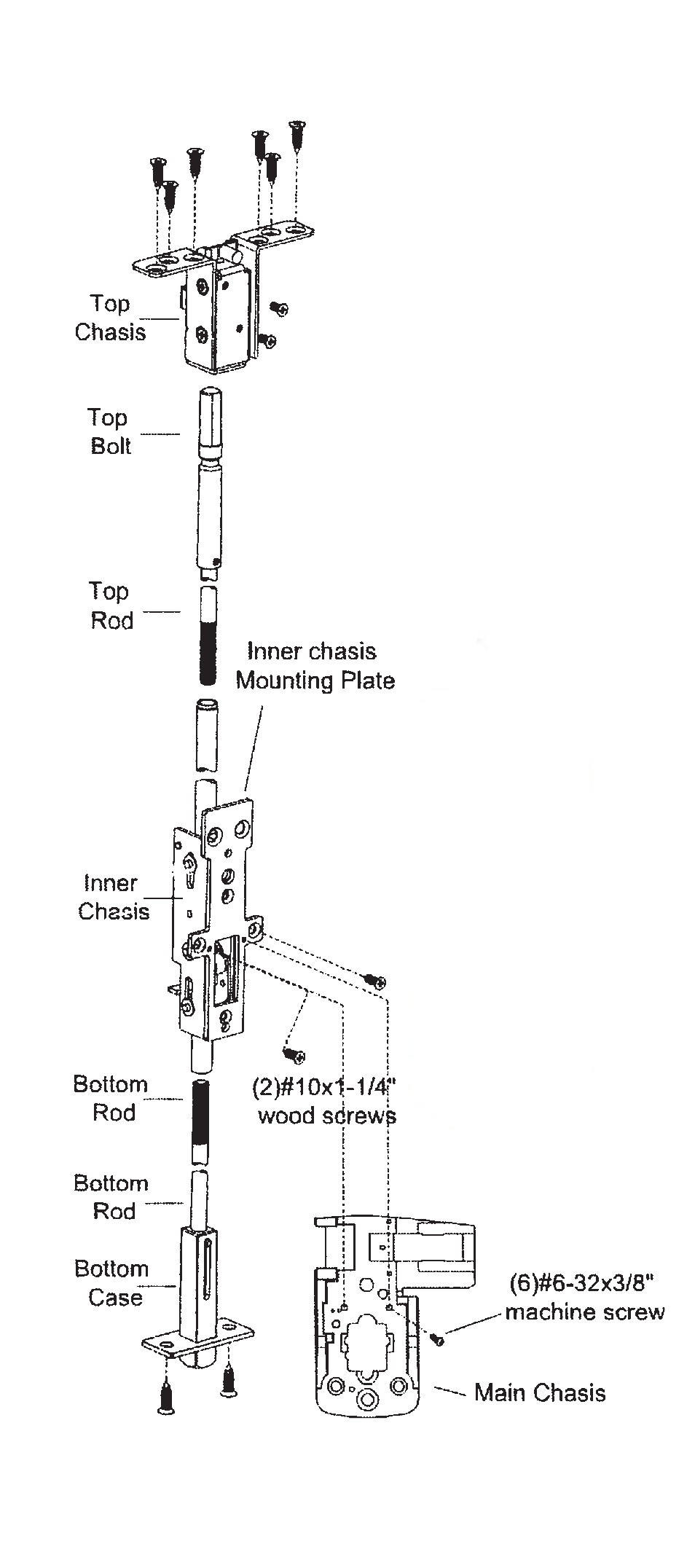

C6 5

Specifications

For Doors Wood. 13/4" (44.5mm) minimum thickness ;
41/2"(114mm) minimum stile width
Chassis Nonferrous alloy
Chassis Cover Bronze or stainless steel
Mounting Furnished standard with machine screws.
End Cap Brass, Bronze or stainless Steel Construction.
Handing Easily field reversible. Specify at time of order LHRB, RHRB for convenience.
ANSI standard A156.3, Grade 1.
Strike 260 top and 265 bottom.
Top and bottom bolts Stainless steel. Top and bottom bolt travel 7/16" (11mm)  Projection adjustable up to 1"(25mm)
Fire Exit hardware M98CVR Series for fire Exit hardware for all types of 8" x 8" Double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
Rail height Specify door opening and mounting height of center line of rail ordering an vertical Rod Exit Device 41" from floor.
Trim See trim Designs section
Door size

M98CVR 3684 for 36" x 84" doors. Other sizes avail e on request ; M98CVR 3696 for 36" x 96" doors.



C6 3



back to top

LEON/MCKIN  CVRESC For

#9800 Concealed Vertical Rod Exit Device For Wood & Metal Doors

Trim Selection

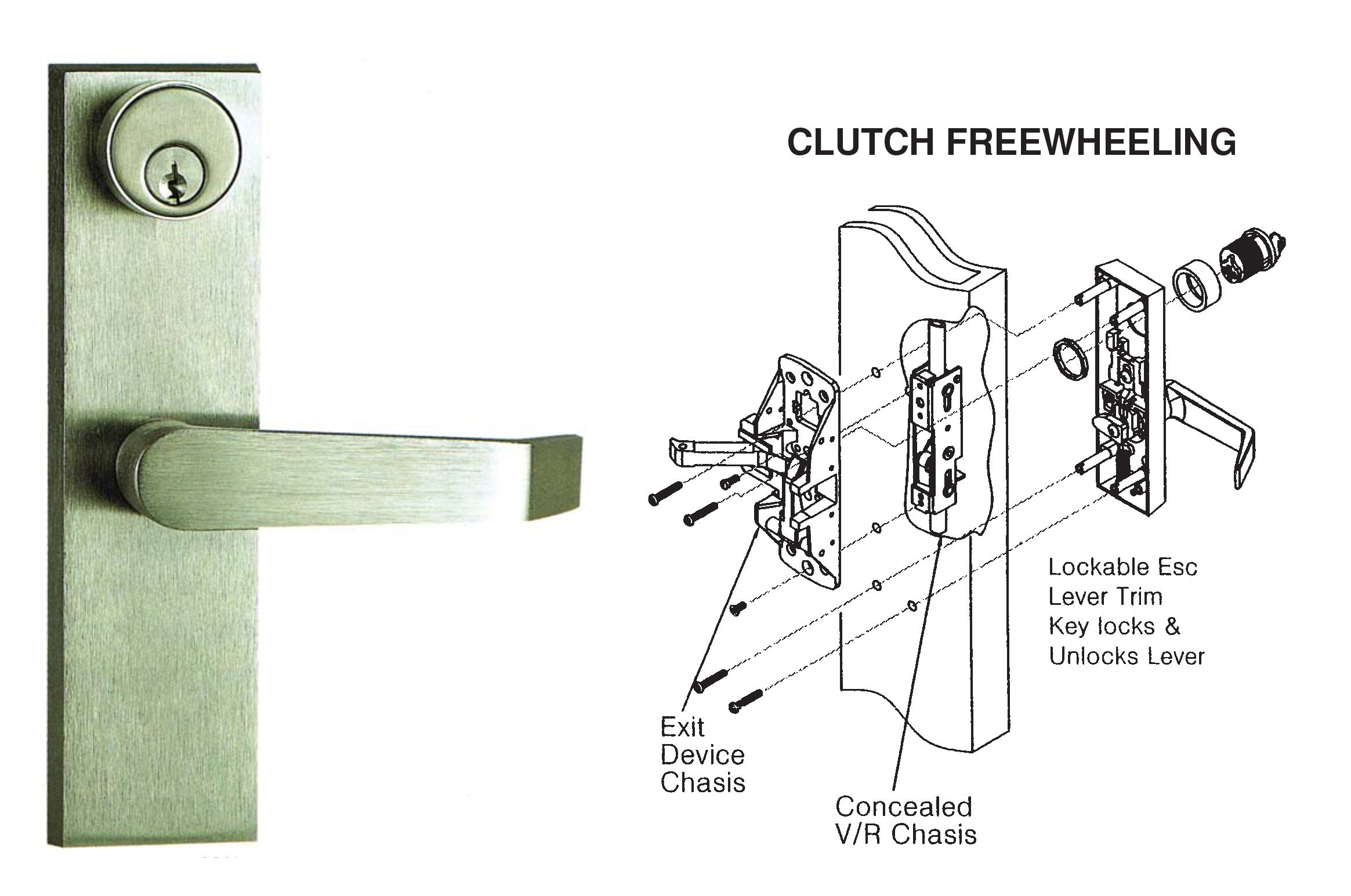

C6 6



Escutcheon lever design

Construction

- Grade 1, thrubolted design, clutch freewheeling. Non handed design. Easily field reversible.

- Hardened steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.



Door Thickness

Architectueal plated finishes



Escutcheon Dimensions

25/16" width x 81/2" length. Lever length: 43/4". Fits and covers 21/8" 161 cutout



CVRES-9800     Entrance

Clutch Mechanism Key locks or unlocks lever Operates as classroom function ANSI Function - 63



CVRES-9805     Storeroom

Clutch Mechanism Key retracts latchbolt, otherwise always locked. ANSI Function - 04



CVRES-9830     Passage

Trim always operable and free. ANSI Function - 62



CVRES-9840     Dummy

Dummy trim. One sided ANSI Function - 10



Keyway:

Standard 6-pin “C” keyway. Also available in Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Arrow, Yale GA, Yale 8, Kwikset. Can also accept Medeco,  Assa, and Kaba high security cylinders.
