For Doors

1³/₄ "thick standard. Also usable on 1 ³/₈ to 2” thick doors.
(specify when other than 1 3/4” thick).
Door widths from 30” ~ 48”.

Stile

4 ¹/₂” minimum stile.

Mounting

Furnished standard with wood & machine screws and SNB’s.

Covers

Zinc or stainless steel.

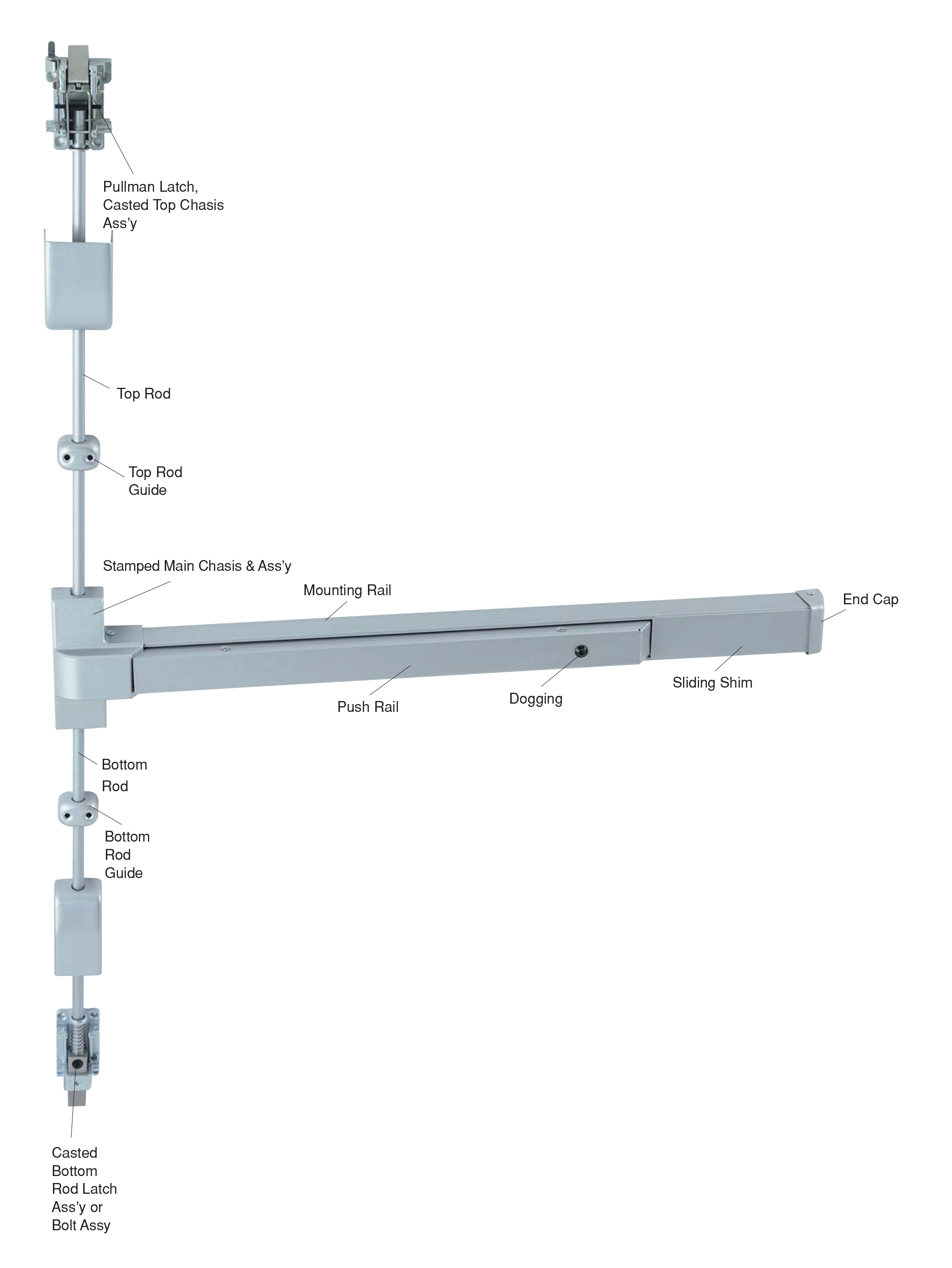

Chassis

Rail Assembly

Steel or stainless steel.

End Cap

Steel or stainless steel.

Hand

Non Handed. Trim reversible.

Latch Bolt

Stainless steel ³/₄” throw.

Cylinder

Brass, rim-type, 5-pin, 2 keys.

Strike

⁵/₈” stop plus shim for ¹/₂” stop.

Dogging Feature

Allen-Key. (Not permitted on Fire Rated model).

Mullion

Removable Mullion & Fire Exit Mullion.

U.L. Listed.

For “Panic Hardware” and Fire Rated model 3 hour for use on doors up to 38” x 86”.

ANSI Standard

ANSI 156.3 - the 5000 series is built to conform to this standard.

Finish

Painted: Aluminum, Bronze, Duronodic.
Plated: Highly polished brass or chrome.
Solid stainless steel: Highly polished or satin.

Touchbar height to finished floor

41"(1043mm) at center

Touchbar projection
                 neutral
                 depressed

2 ¹/₂" (64mm)
1 ³/₄" (45mm)

Center case

6"x 3- ³/_4" x 2- ¹/₂"
(153mm x 94mm x 64mm)

Device length
- Short 3' (914mm)
- Long 4' (1219mm)

2'9" x 3' (840mm to 914mm) door size
2'9" x 4' (1145mm to 1219mm) door size

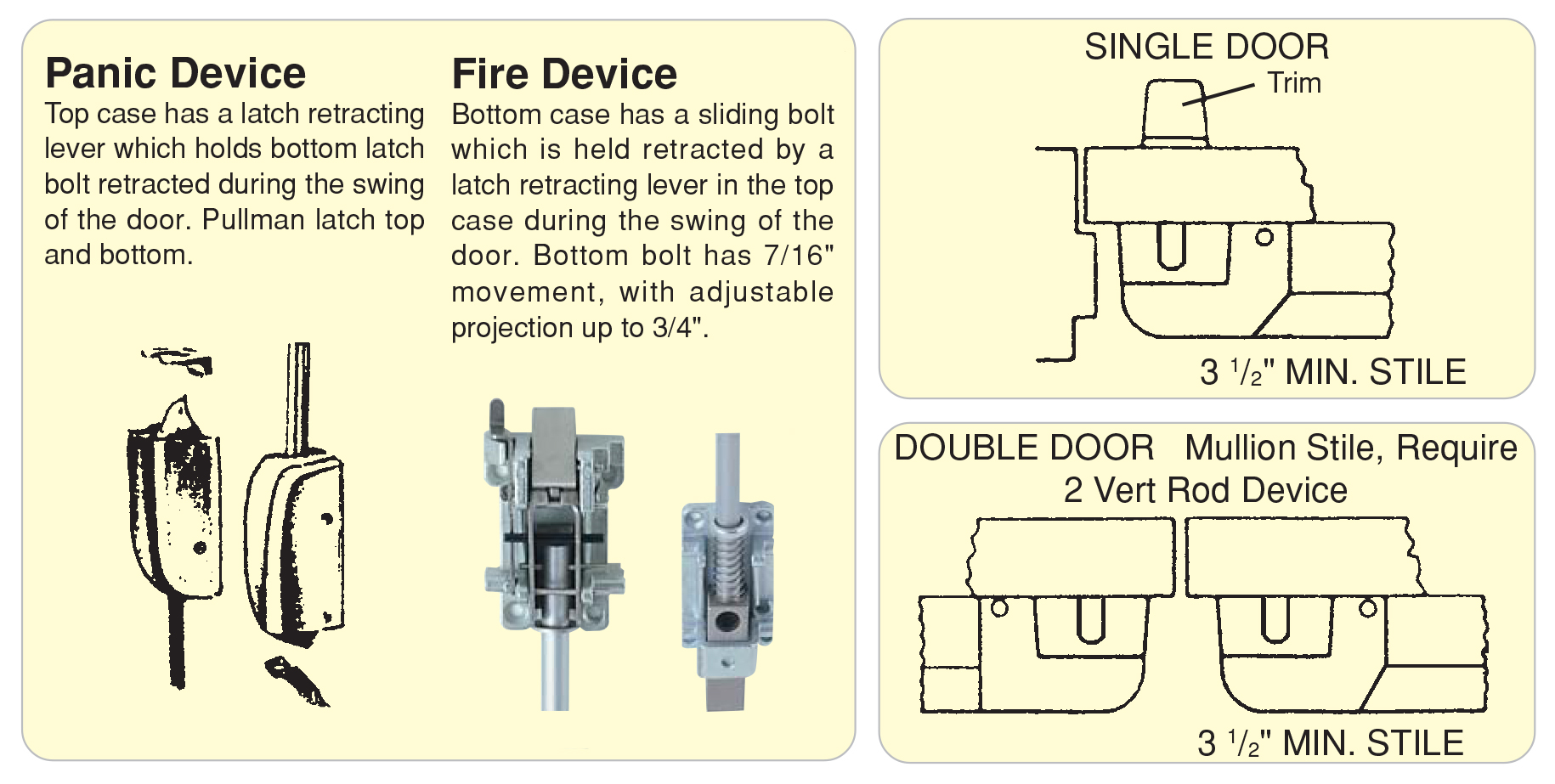

Panic grade top & bottom latch case

3 ¹⁵/₁₆" x 2 ¹/₈" x 1 ³/₈"
(100mm x 52mm x 42mm)

Fire grade top latch case

3 ¹⁵/₁₆" x 2 ¹¹/16" x 1 1/16"
(100mm x 68mm x 53mm)

Fire grade bottom latch case

3 ¹⁵/₁₆" x 2 ¹/₈" x 1 ³/₈"
(100mm x 52mm x 42mm)

Top and bottom rod length for 36” x 84” doors

Top rod 42 1/4 ” (1100mm), bottom rod 37 ³/₄ " (960mm)

Top and bottom rod length for 48” x 96” doors

Vertical rods
