Lever Design / Escutcheon lever design / NESC Trim for #9800 Series / Pull Design / Thumbpiece Trim
LEON/MCKIN Trim Selection
Lever Design
Non handed Grade 1
Cylindrical body hardened steel heavy duty tailpiece.
For 1 3/4" " and 2 1/4" " doors. Available for fire and non fire rated rim and veritcal rod exit devices.
Rose diameter 3 1/2", lever length 4 3/4". Fits and covers 161 cutout.
Finishes: US26D, US10B, US3, US4.
8000/L Entrance
Key retracts latrchbolt, operates as classroom finctionunlocks lever.
ANSI Function - 08 / 13
8000/S Storeroom
Key operation lever, otherwise always locked. ANSI Function - 04
8000/P Passage
Lever always operable and free. ANSI Function - 15
8000/D Dummy
Dummy trim. One sided. ANSI Function - 10
Keyway:
Standard 6-pin “C” keyway. Also available in Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Assa, and Kaba high securitycylinders.
Interchangeable Core
Interchangable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.
Escutcheon lever design
Construction
Grade 1, thrubolted design, clutch freewheeling. Non handed design. Easily field reversible.
Hardened ateel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.
Finished
Architectural plated finish.
See page .
Door Thickness
Standard 13/4"
Escutcheon Dimensions
2 5/16" width x 8 1/2" " length. Lever length: 4 3/4". Fits and covers 2 1/8" 161 cutout.
ESC-00 Entrance
Key locks or unlocks thumbpiece. ANSI Fuction - 13 / 63
ESC-05 Storeroom
Key retracts latchbolt, otherwise always locked. ANSI Fuction - 04
ESC-30 Passage
Trim always operable and free. ANSI Fuction - 15 / 62
ESC-40 Dummy
Tummy trim. One sided. ANSI Fuction - 10
Keyway:
Standard 6-pin “C” keyway. Also available in Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Assa, and Kaba high security cylinders.
Interchangeable Core
Interchangable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

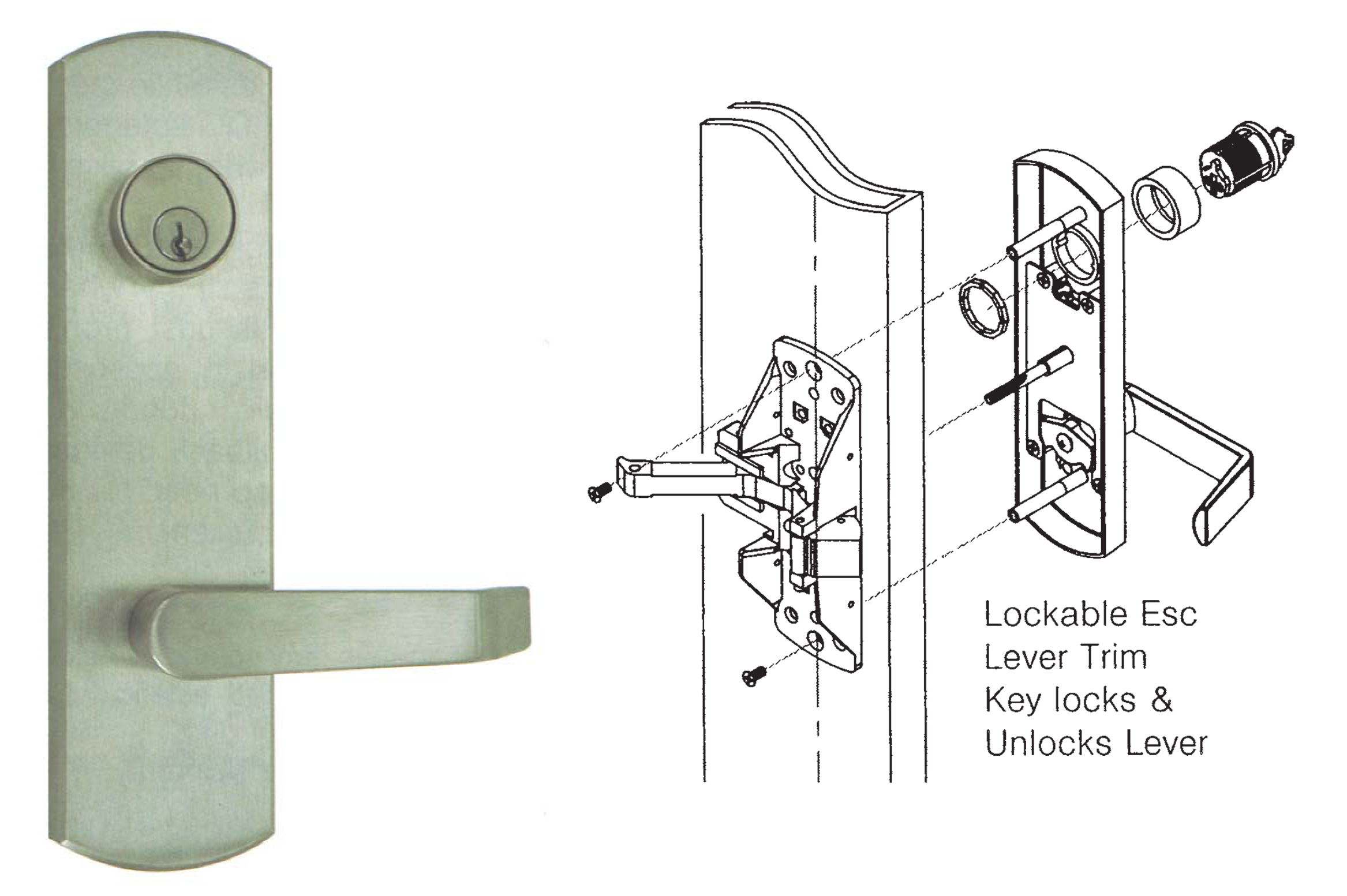

NESC Trim for #9800 Series
Escutcheon lever design
Construction
- Rigid, non clutch mechanism.
- Double heavy duty spring support to prevent sagging and enhance openration.
- Grade 1, thrubolted design, clutch freewheeling. Non handed design. Easily field reversible.
- Hardened steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.
Door Thickness
Standard 1 3/4". For 2 1/4" thick door use. additional part#TAIL3.
Escutcheon Dimensions
2 3/4" width x 10 1/4" length. Lever length: 4 3/4"
Fits and covers 2 1/8" 161 cutout
NESC-9800 Entrance
Rigid Entrance, Key locks or unlocks escutcheon trim. ANSI Function (63) Operates as classroom function
NESC-9805 Storeroom
Key retracts latchbolt, otherwise always locked. ANSI Function (04)
NESC-9830 Passage
Trim always operable and free. ANSI Function (62)
NESC-9840 Dummy
Tummy trim. One sided. ANSI Function (10)
Keyway:
Standard 6-pin “C” keyway. Also available in Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Arrow, Yale GA, Yale 8, Kwikset. Can also accept Medeco, Assa, and Kaba high security cylinders.

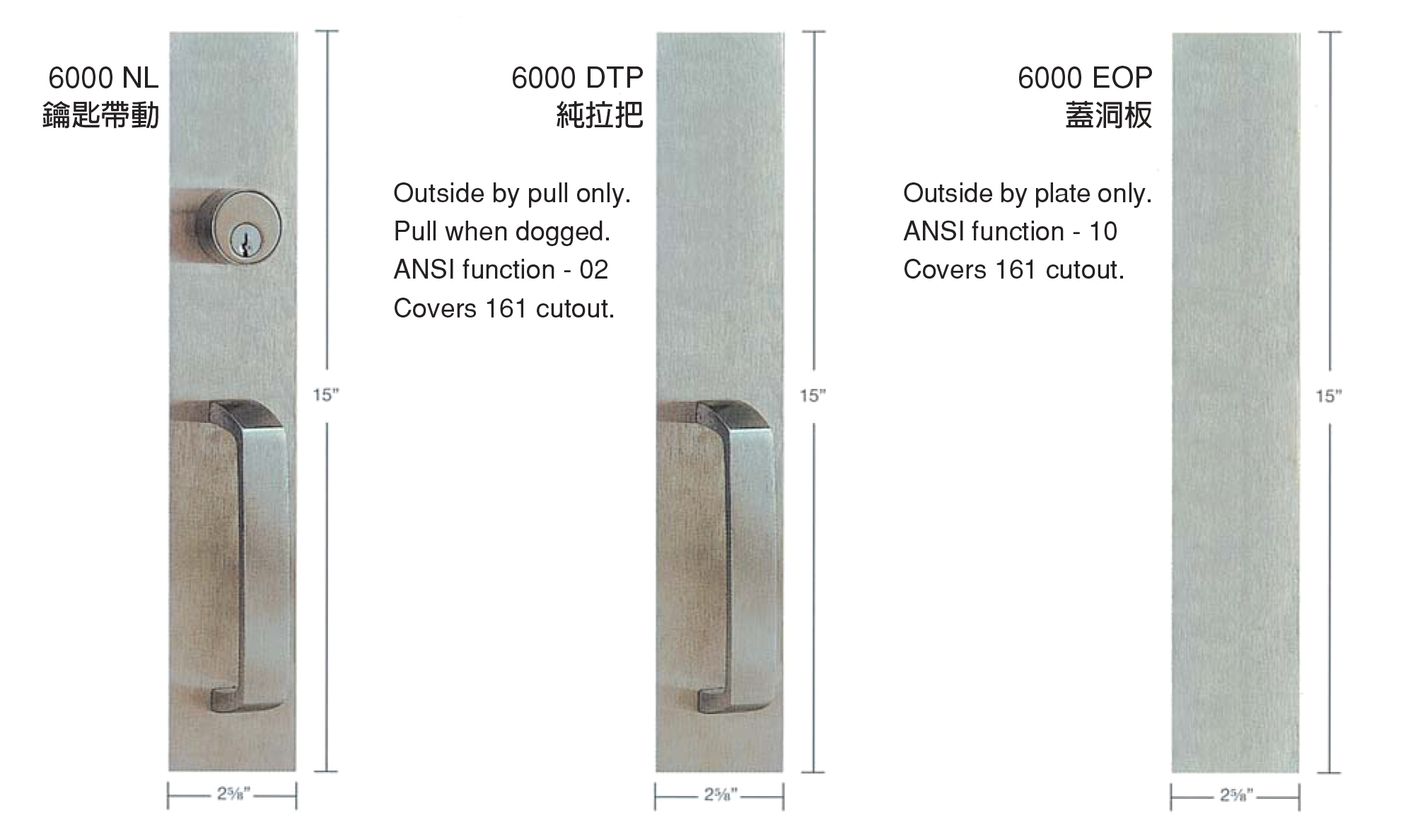

Pull Design
Keyway:
Standard 6-pin “C” keyway. Also available in Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Arrow, Yale GA, Yale 8, Kwikset. Can also accept Medeco, Assa, and Kaba high security cylinders.
Interchangeable Core
Interchangable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.
Finished
Architectural plated finishes. See page .
Door Thickness
Standard 1 3/4"
Thumbpiece Trim
THP-00 Entrance
Key locks or unlocks thumbpiece. ANSI Function - 13 / 63
THP-05 Storeroom
Key retracts latchbolt, otherwise always locked. ANSI Function - 04
THP-30 Passage
Trim always operable and free. ANSI Function - 15 / 62
THP-40 Dummy
Tummy trim. One sided. ANSI Function - 10
Keyway:
Standard 6-pin “C” keyway. Also available in Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Assa, and Kaba high securitycylinders.
Interchangeable Core
Interchangable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.
Finished
Power coated aluminum (alum), dark bronze duranodic (duro), glod.
Door Thickness
Standard 1 3/4"
