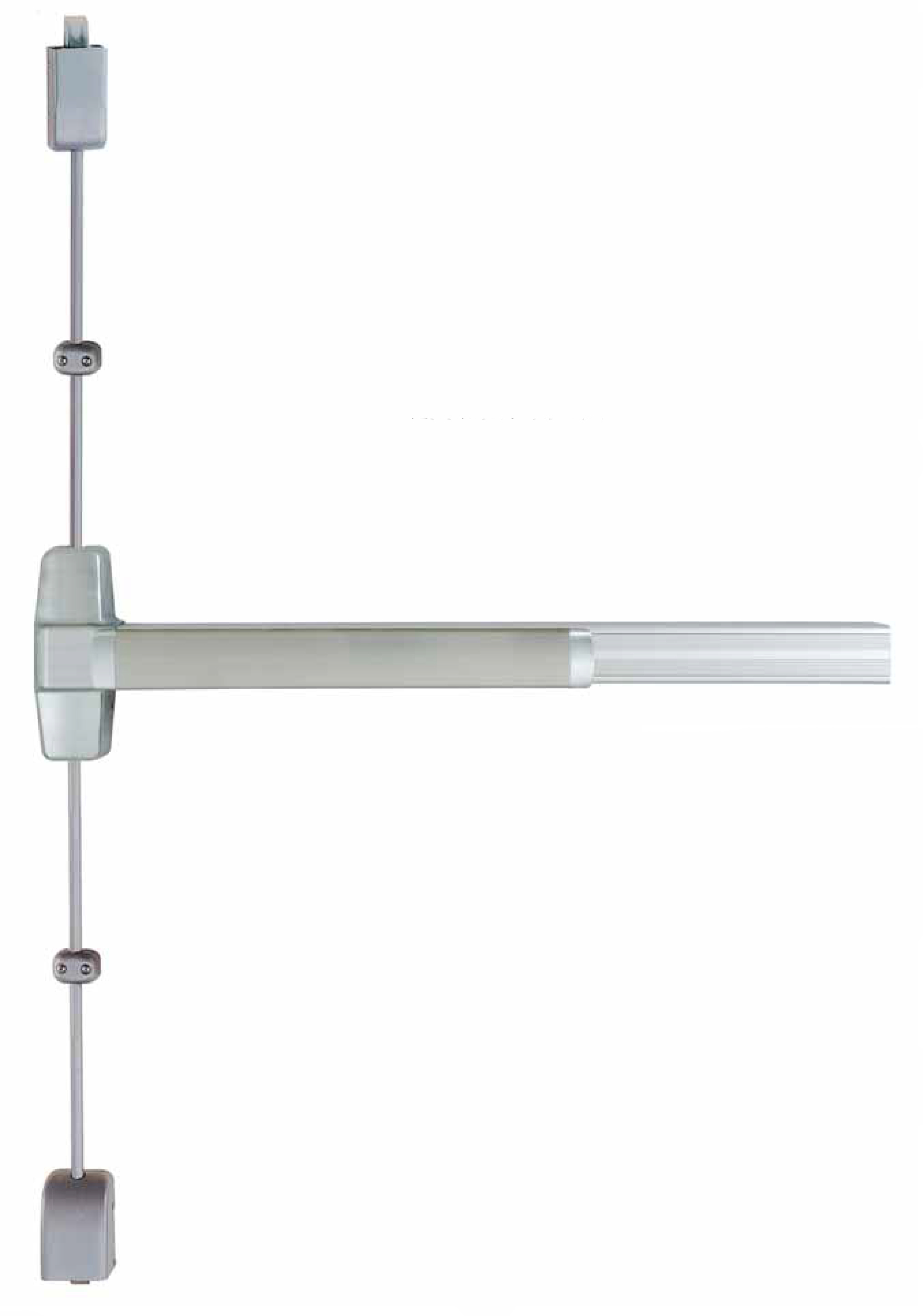

LEON/MCKIN     1100/4100 (9960 & F9960) Series

Panic & Fire Vertical Rod Type Exit Devices

 C7 3 1

Specifications

For Doors

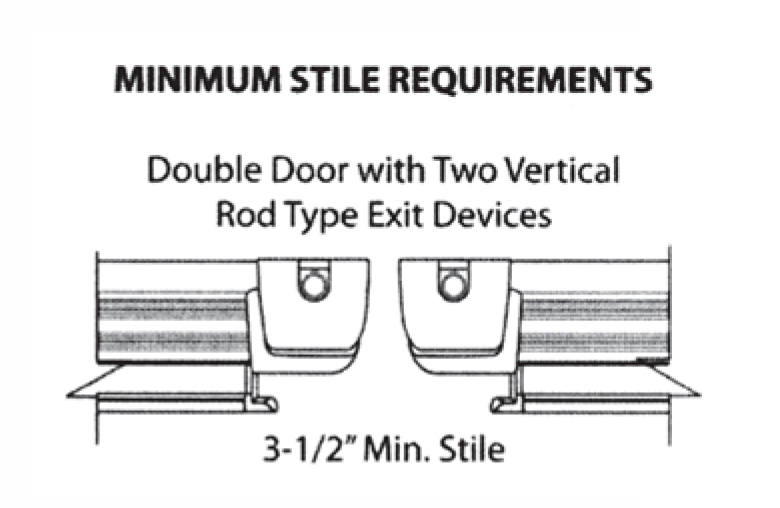

13/4" thick standard optional 21/4thick. 41/2" minimum stile width required for signle or double door application using standard 239 strike and pull or lever trims.

Chassis

Non-ferrous alloy (Panic Grade), steel (Fire Grade).

Cover

Brass, bronze or stailess steel. Cover stock hollow metal doors with 161 cut out.

Mounting

Furnished with wood and machine screws. Available with thru bolts on request. Thru bolts are included and standard packaging on rated devices.

End Cap

Brass, bronze or stainless steel constrution.

Hand

Non handed, center hub.

Latch Bolt

Stainless steel 3/4" throw with anti-pick feature.

Spring

Stainless steel throughout.

ANSI standard

A156.3, Grade 1.

Rail Assembly

Heavy gauge extruded aluminum body with stainless.

Strike

938 packed atandard (see strike page).

Dogging Feature

Allen-type key furnished standard on non-fire labeled devices.

Mullion

Available.

UL and ULC Listed

9960 Series for panic. F9960 Series for fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors  for up to 3 hours fire labeled installations, conforms to standards UL 10C and UBC 7-2-1997 codes.

Finish

Architectural plated finishes.

Door size

9960V3694 and F9960V3684 for 36” x 84” doors.
9990V4896 and F9990V4896 for 48” x 96” doors.
9990V3696 and F9990V3696 for 36” x 96” doors.
9950V36120 for 36” x 120” doors.
9940V48120 for 48” x 120” doors.





Dimensions

Touchbar height to finished floor

41"(1043mm) at center

Touchbar projection
                 neutral
                 depressed


3-
5/8" (92mm)
1- 7/8" (73mm)

Center case

8- 1/16"x 2 3/4"x 2 1/2"
(205mm x 68mm x 62mm)

Device length
- Short 3' (914mm)

Long 4' (1219mm)


2'9" x 3' (840mm to 914mm) door size

2'9" x 4' (1145mm to 1219mm) door size

Panic grade top & bottom latch case

3- 15/16x 2-1/8x 2- 3/8(100mm x 52mm x 42mm)

Fire grade top latch case

3- 15/16x 2-11/16x 2- 1/16(100mm x 68mm x 53mm)

Fire grade bottom latch case

3- 15/16x 2-1/8x 1- 3/8(100mm x 52mm x 42mm)

Top & bottom rod length for 36" x 84" doors

Top rod 43- 1/4"(1100mm), bottom rod 37-3/4"(960mm)

Top & bottom rod length for 48" x 96" doors

Top rod 53- 1/16"(1350mm), bottom rod 37-3/4"(960mm)

Vertical rods

1/2" (13mm) Round tubing
