3000 Series Trim Selection

Lever Design  /  Knob Design  /  Escutcheon lever design  /  Thumbpiece Trim

LEON/MCKIN     Trim Selection

Lever Design

C3 6 1

Non handed Grade 1

Cylindrical body hardened steel heavy duty tailpiece.

For 1 3/4" " and 2 1/4" " doors. Available for fire and non fire rated rim and veritcal rod exit devices.

Rose diameter 3 1/2", lever length 4 3/4". Fits and covers 161 cutout.

Finishes: US26D, US10B, US3, US4.



8000/L Entrance

Key retracts latrchbolt, operates as classroom finctionunlocks lever.

ANSI Function - 08



CLU5000L  Cluth Free Wheeling(ENTRANCE)

Key operation latchbolt, unlocked lever.

ANSI Function - 08



8000/S Storeroom

Key operation lever, otherwise always locked. ANSI Function - 04



8000/P Passage

Lever always operable and free. ANSI Function - 15



8000/D Dummy

Dummy trim. One sided. ANSI Function - 10



Keyway:

Standard 6-pin “C” keyway. Also available in Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Assa, and Kaba high securitycylinders.

back to top

Knob Design

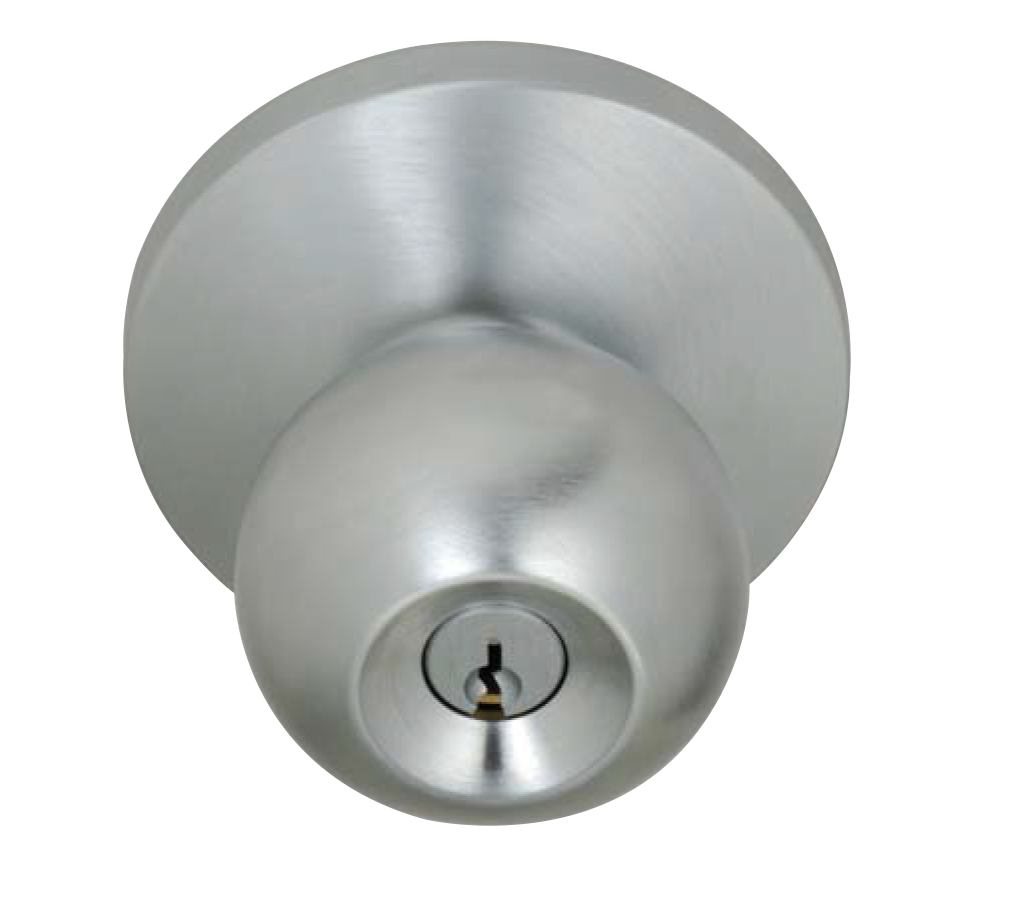

 C3 6 2

Non handed Grade 2

Cylindrical body hardened steel heavy duty tailpiece. For 13/4" doors. Available for fire and non fire rated rim and veritcal rod exit devices.

Rose diameter 3". Fits and covers 161 cutout.

Finishes: US26D



8000/K Entrance

Key retracts latrchbolt,  unlocks knob. ANSI Function - 08



8000/KP Passage

Knob always operable and free.  ANSI Function - 15



8000/KD  Dummy

Dummy trim. One sided.  ANSI Function - 10

back to top

Escutcheon lever design



C3 6 3



Construction

Grade 1, thrubolted design, clutch freewheeling. Non handed design. Easily field reversible.

Hardened ateel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.

Finished

Power coated aluminum (alum)

Power coated dark bronze duranodic (duro)

Power coated glod

Door Thickness

Standard 13/4"

Escutcheon Dimensions

2 5/16" width x 8 1/2" " length. Lever length: 4 3/4". Fits and covers 2 1/8" 161 cutout.



ESC-00  Entrance

Key locks or unlocks thumbpiece. ANSI Fuction - 13 / 63



ESC-05  Storeroom

Key retracts latchbolt, otherwise always locked. ANSI Fuction - 04



ESC-30  Passage

Trim always operable and free. ANSI Fuction - 15 / 62



ESC-40  Dummy

Tummy trim. One sided. ANSI Fuction - 10



Keyway:

Standard 6-pin “C” keyway. Also available in Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Assa, and Kaba high security cylinders.

Interchangeable Core

Interchangable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

back to top

Thumbpiece Trim

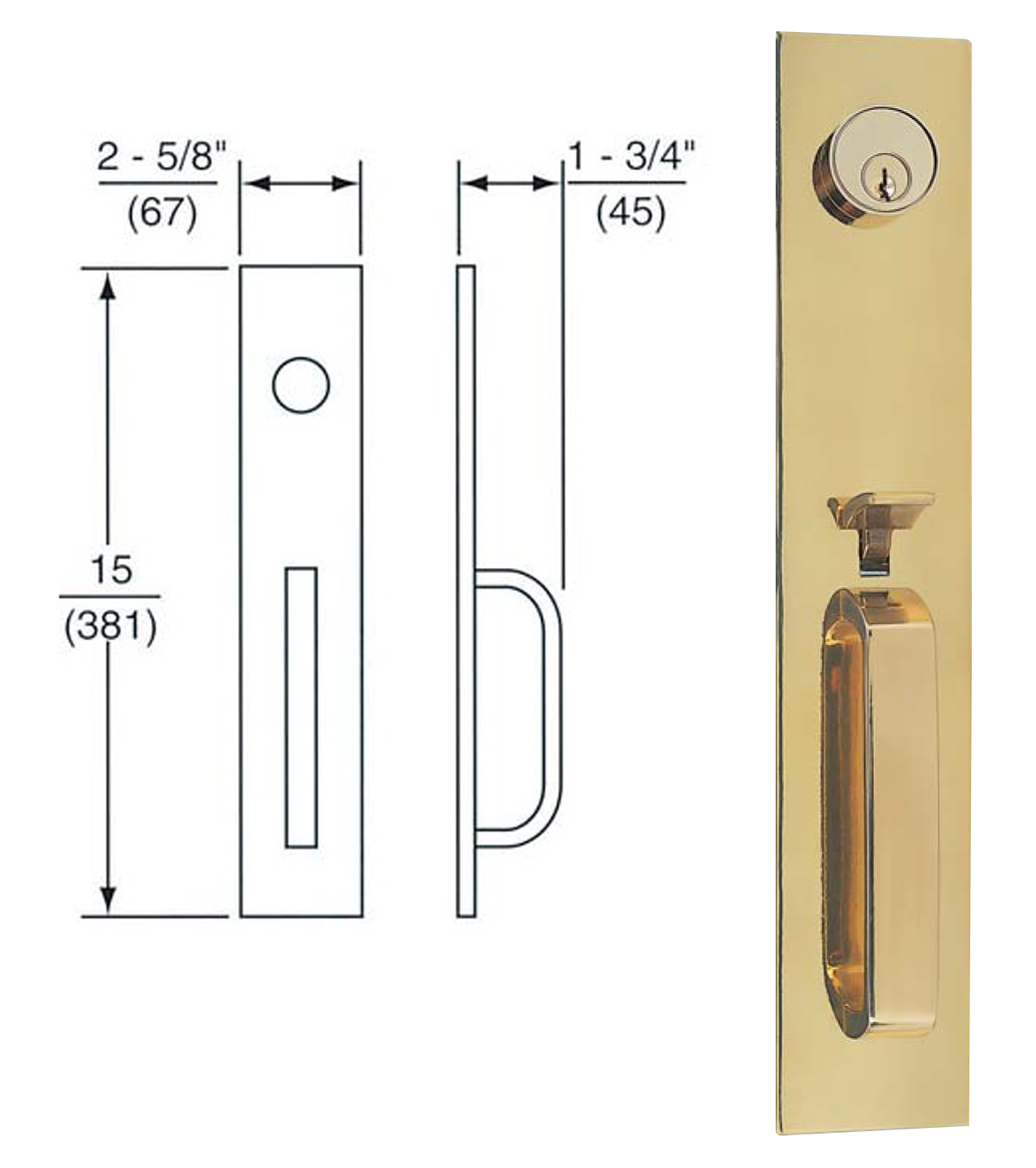

 C3 6 5

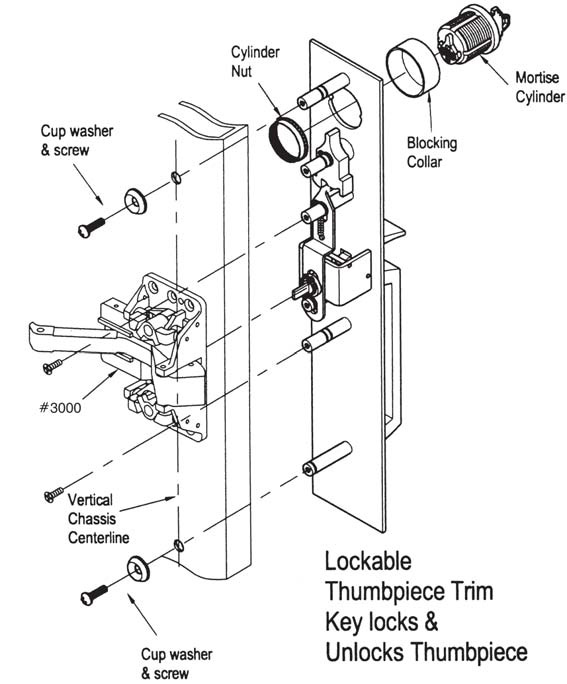

C3 6 6



THP-00  Entrance

Key locks or unlocks thumbpiece. ANSI Function - 13 / 63



THP-05  Storeroom

Key retracts latchbolt, otherwise always locked. ANSI Function - 04



THP-30  Passage

Trim always operable and free. ANSI Function - 15 / 62



THP-40  Dummy

Tummy trim. One sided. ANSI Function - 10



Keyway:

Standard 6-pin “C” keyway. Also available in Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Assa, and Kaba high securitycylinders.



Interchangeable Core

Interchangable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.



Finished

Power coated aluminum (alum), dark bronze duranodic (duro), glod.



Door Thickness

Standard 1 3/4"
