Strikes for use with 3100 vertical rod exit device

221

Standard for 3100. Applied to surface of floor or to a flat threshold. Standard packaging.

227

Applied to surface of stop. No mortise required. Standard packaging.

233

Bottom strike. Alternate bottom strike. Flush mounting stainless steel. Furnished with expansion shields. Requires mortise in the floor.

Strike for use with 3000 rim type exit device

239

For 3000 surface applied. Standard packaging.

Strikes for use with 7100 vertical rod fire rated exit device

245

Standard for 7100. Standard packaging.

233

Bottom strike for 7100. Flush mounting stainless steel. Furnished with expansion shields.

Requires mortise in the floor. Standard packaging.

Strike for use with 7000 rim fire exit device

245

For 7000 surface applied. Standard packaging.

Overlapping Strike

251

Surface applied. Used on  inactive leaf for device on active keaf of pair of doors without mullion.

Additional Strikes

 LFF

Lock front filler.

SF

Strike filler.

Accessories

Glass Bead Shim Kits

401 - For rim tyoe, ¹/₈" thick

406 - For vertical type, ¹/₈" thick

412 - For fire rated vertical type, ¹/₈" thick

When exit device are used with shim kits with outside trim, spindle length thumbpiece and thru bolt length must be increased accordingly.

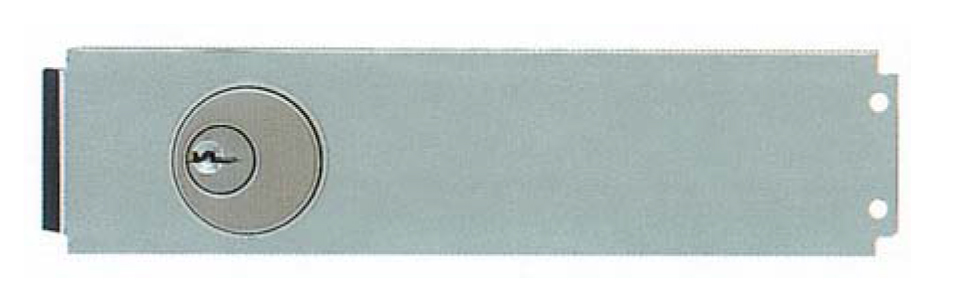

Cylinder Dogging Kits

Prefix "CD" before part#. Available for all 3000 Series devices except fire exit hardware. Cylinder dogging with a mortise cylinder is located on the mounting insert lock bolt in retracted position. 27" minimum door width is required.

Cyl dogging Kits Panic Rim & Vert Rod Device
