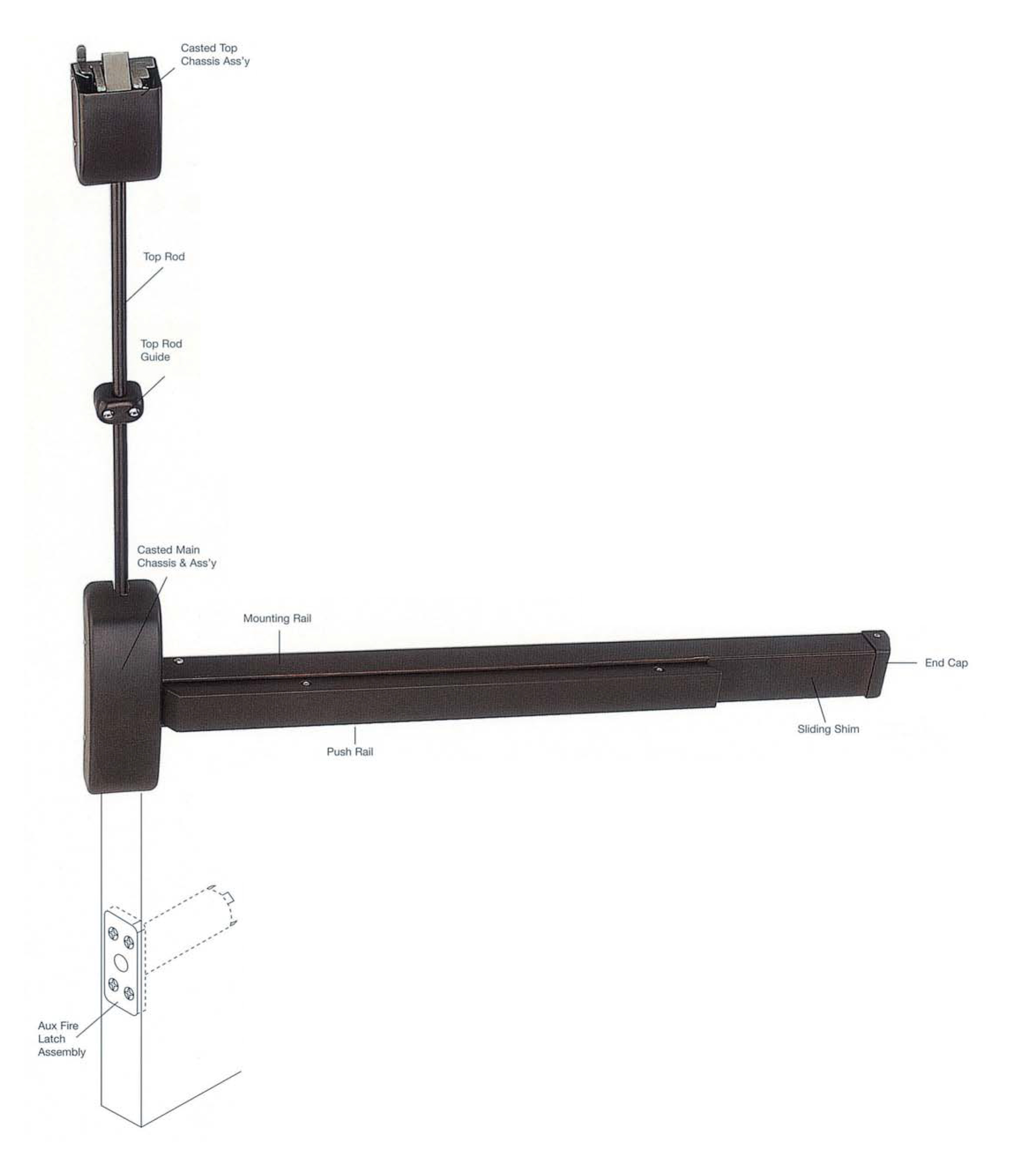

LEON/MCKIN #6100-BTL & #9100-BTL Vertical Rod Type Exit Device Less Bottom Rod - LBR
Specifications

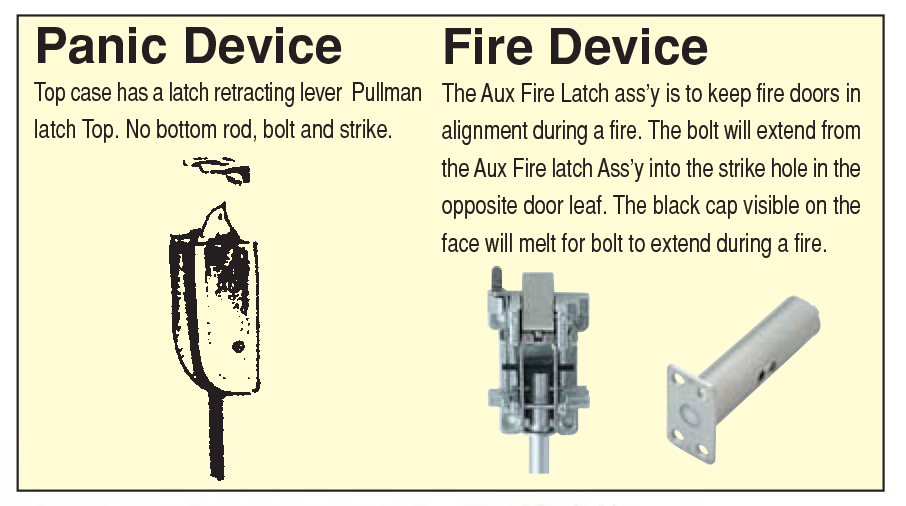

| LBR | No Bottom Strike, Free access for wheel chairs, strectcher and carts therefore eliminates tripping potential and disfguration of floors due to dragging of bootom bolts. |
| For Doors | 13/4" thick standard. 3 3/4" minimum stile width required for signle door application. 3 1/2 " minimum stile width required for double door application. Lever trims available. |
| Chassis | Nonferrous alloy (Panic Grade), steel (Fire Grade). |
| Cover | Drawn stainless steel, steel, or brass. Cover stock hollow metal doors with 161 cutout. |
| Mounting | Furnished standard with wood and machine screws. Thru bolts are standard packaging on fire rated devices. |
| Alarm | Available. Prefix “Airm” before part #. |
| End Cap | Steel construction. |
| Hand | Easily field reversible. Specify at time of order LHRB, RHRB for convenience. |
| Latch Bolt, Spring | Stainless steel. |
| ANSI standard | A156.3, Grade 1. |
| Rail Assembly | Heavy gauge steel, painted. |
| Strike | see strike page. |
| Dogging Feature | Allen-type key furnished standard on non-fire labeled devices. |
| UL and UKC Kisted | All Series for panic. BTL Series for fire exit hardware for all types of 8’ x 8’ double doors including double egress for up to 3 hours metal. Conforms to standards UL 10C and UBC 7-2-1997 codes. |
| Finish | Alum/Duro/Gold |
| Door size | 36"x 84” / 48” x 96” / 36” x 96” doors. |
Dimensions
| Touchbar height to finished floor | 41"(1043mm) at center |
| Touchbar projection neutral depressed |
2 1/2"(64mm) |
| Center case | 8 1/2x2 1/4 x2(216mm x 63.5mm x 52mm) |
| Device length - Short 3'(914mm) Long 4'(1219mm) |
2'9"x3'(840mm to 914mm) door size 2'9"x4'(1145mm to 1219mm) door size |
| Panic grade top & bottom latch case | 3 15/16" x 21/8" x 13/8" (100mm x 52mm x 42mm) |
| Fire grade top latch case | 3 15/16" x 211/16" x 21/16" (100mm x 68mm x 53mm) |
| top and bottom rod length for 36" x 84"doors | Top rod 43 1/4" (1100mm), bottom rod 37 3/4" (960mm) |
| top and bottom rod length for 48" x 96"doors | Top rod 53 1/16" (1350mm), bottom rod 37 3/4" (960mm) |
| Vertical rods | 1/2" (13mm) Round tubing. |
