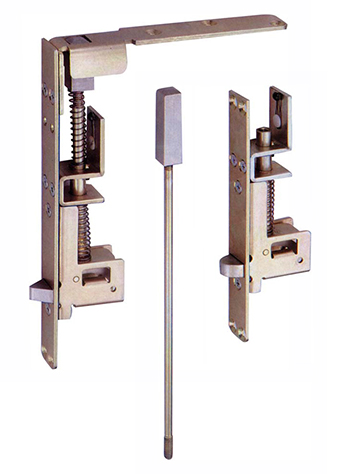

AUTOMATIC FOR WOOD COVERED COMPOSITE DOORS LABEL B, C, D AND E 1" x 6 3/4" FACE PLATE
FULLY AUTOMATIC; WHEN ACTIVE DOOR IS OPENED, INACTIVE DOOR IS FREE.
FINISH: 3, 10, 10B, 26, 26D & 32D.
USED IN PAIRS; AT TOP & BOTTOM OF INACTIVE DOOR.
PACKED: One Set, Two (2) Bolts per Box w / #8xl" Tapplng Screws; Complete with Installation Template
THERMAL LOCK: Automatically locks inactive door under high fire / heat conditions.
AUTOMATIC FOR METAL DOOR LABEL A, B, C, D AND E 1" x 6 3/4" FACE PLATE
TO FIT STANDARD ANSI DOOR PREPARATION. FULLY AUTOMATIC; WHEN ACTIVE DOOR IS OPENED,INACTIVE DOOR IS FREE.
FINISH: 3, 10, 10B, 26, 26D & 32D.
USED IN PAIRS; AT TOP & BOTTOM OF INACTIVE DOOR.
PACKED: One Set, Two (2) Bolts per Box w /#8xl" Tapplng Screws; Complete with Installation Template
THERMAL LOCK: Automatically locks inactive door under high flre / heat conditions.
- Smooth, Easy Action
Only 5 Lbs Force needed to drive Cam/Piston actuated
mechanism, meet ADA regulations.
- Override feature
Prevents bolt obstruction damage.
- Adjustable
For unusual clearances or conditions.
- Non-handed single bolt
